Pipe Shredders vs. Film Shredders: Specialized MAIKONG Solutions

» post_parent) {?>Plastic Shredder » Pipe Shredders vs. Film Shredders: Specialized MAIKONG Solutions

Comparison of rigid pipe waste and flexible film waste showing physical differences Comparison of rigid pipe waste and flexible film waste showing physical differencesComparison of rigid pipe waste and flexible film waste showing physical differences

Choosing between pipe shredders and film shredders is a critical decision that directly impacts your plastic recycling operation’s efficiency, output quality, and profitability. This comprehensive guide examines the fundamental differences between these specialized shredding technologies, helping Philippine businesses select the optimal MAIKONG solution for their specific waste streams. Whether you’re processing rigid PVC pipes or flexible packaging films, understanding the unique engineering challenges and equipment specifications will ensure maximum return on your investment.

Understanding the Fundamental Differences: Pipe vs. Film Plastic Waste

Before selecting a shredder, it’s essential to understand the distinct characteristics of pipe and film waste streams, as these properties directly influence equipment design requirements.

Rigid Pipe Materials: Characteristics and Challenges

Plastic pipes, typically made from PVC, HDPE, or PP, present unique processing challenges due to their rigidity, wall thickness, and dimensional stability. These materials resist deformation and require significant force to break down.

  • High material density (0.91-1.58 g/cm³)
  • Substantial wall thickness (2-20mm)
  • High structural integrity and impact resistance
  • Potential for contamination with cement, soil, or chemical residues
  • Varying diameters and lengths requiring specialized feeding systems

Flexible Film Materials: Characteristics and Challenges

Plastic films, including LDPE packaging, agricultural films, and shopping bags, create different processing challenges due to their flexibility, thinness, and tendency to wrap around cutting mechanisms.

  • Low material density (0.91-0.93 g/cm³)
  • Minimal thickness (10-250 microns)
  • High flexibility and elasticity
  • Tendency to wrap, tangle, and bridge in standard shredders
  • Often contaminated with adhesives, inks, or organic matter

Engineering Challenges in Pipe Shredders vs. Film Shredders

The distinct physical properties of pipes and films necessitate specialized engineering approaches to achieve efficient size reduction. MAIKONG’s engineering team has developed tailored solutions for each material type.

Pipe Shredding Challenges

  • High Torque Requirements: Breaking down rigid pipes demands powerful motors and robust drive systems
  • Blade Durability: Cutting edges must withstand continuous high-stress operation
  • Heat Management: Friction during cutting generates significant heat requiring effective cooling
  • Noise and Vibration: Rigid materials create more operational noise requiring dampening systems
  • Feeding Mechanism: Large, awkward shapes need specialized hoppers and feed assists

Film Shredding Challenges

  • Material Wrapping: Films tend to wrap around rotors causing jams and downtime
  • Feeding Issues: Lightweight materials “float” and resist gravity feeding
  • Bridging Problems: Films create air pockets and bridge over cutting chambers
  • Inconsistent Output: Flexible materials produce variable particle sizes
  • Airflow Management: Controlling dust and maintaining proper ventilation

MAIKONG engineer examining specialized cutting mechanisms for different plastic waste types

MAIKONG Pipe Shredders: Engineered for Rigid Materials

MAIKONG’s pipe shredding solutions are specifically designed to overcome the challenges presented by rigid, thick-walled plastic pipes. Our engineering team has developed specialized equipment that delivers consistent performance even with the toughest materials.

Key Features of MAIKONG Pipe Shredders

Cutting Technology

  • Dual-shaft design with interlocking blades for maximum shearing force
  • Hardened steel alloy blades (58-62 HRC) for extended service life
  • Customizable blade configurations for different pipe diameters
  • Precision blade gap adjustment for optimal cutting efficiency

Drive System

  • High-torque hydraulic or electric motors (18.5-90 kW options)
  • Reinforced gearbox with shock absorption system
  • Automatic reverse function for clearing jams
  • Variable speed control for different material types

MAIKONG HD-800 Pipe Shredder

Our heavy-duty pipe shredder delivers reliable performance for PVC, HDPE, and PP pipes up to 630mm diameter. With 45kW dual motors and specialized cutting technology, it processes up to 1500 kg/hour of rigid pipe material.

View Pipe Shredder Specifications

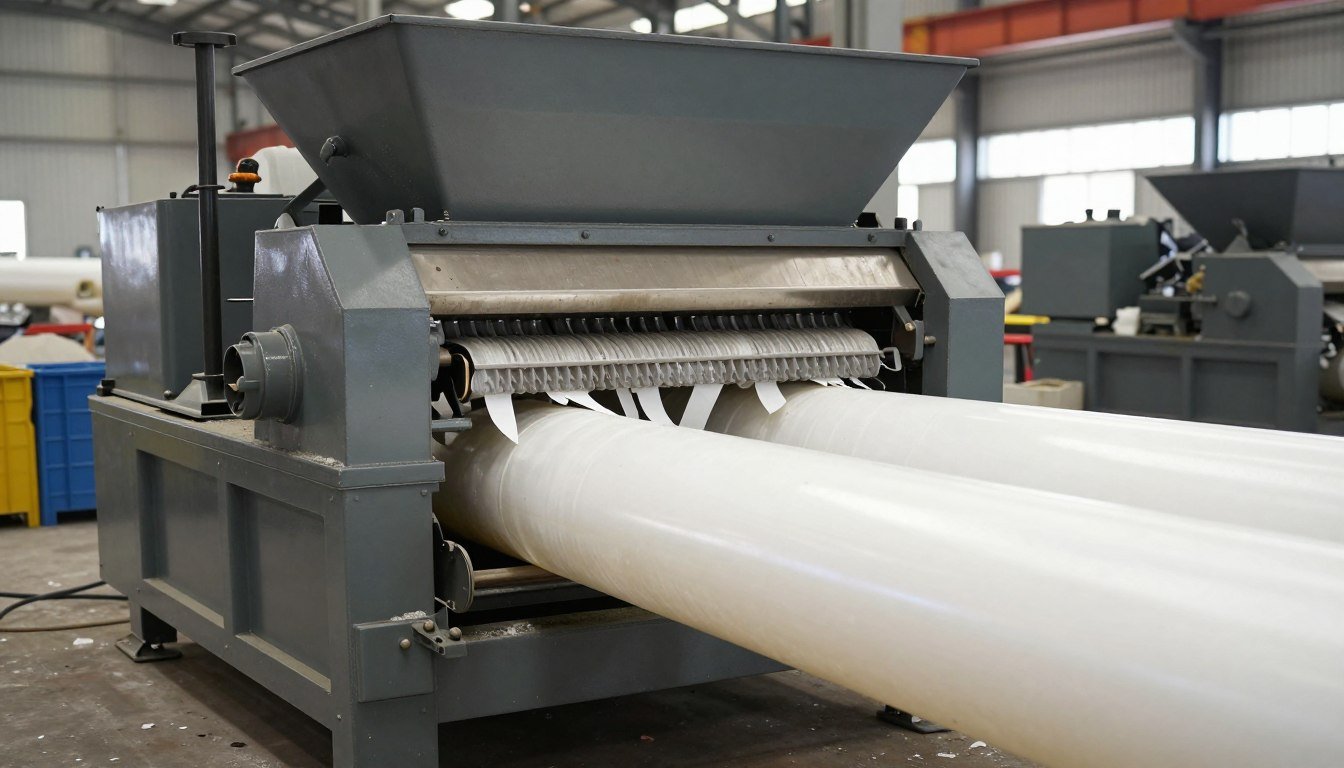

MAIKONG HD-800 Pipe Shredder processing PVC pipes in a recycling facility

MAIKONG Film Shredders: Specialized for Flexible Materials

Plastic films require a fundamentally different approach to shredding compared to rigid materials. MAIKONG’s film shredders incorporate specialized design elements to prevent wrapping, ensure consistent feeding, and deliver uniform output.

Key Features of MAIKONG Film Shredders

Anti-Wrapping Technology

  • Specialized rotor design with non-stick surface treatment
  • Optimized blade geometry to slice rather than pull material
  • Integrated material separators to prevent wrapping
  • Controlled cutting chamber airflow to reduce material adhesion

Feeding System

  • Forced feeding mechanism with hydraulic ram
  • Anti-bridging agitators to prevent material vaulting
  • Specialized hopper design for lightweight materials
  • Optional pre-compression system for bulky film waste

MAIKONG SF-600 Film Shredder

Our specialized film shredder features anti-wrapping technology and forced feeding systems designed specifically for agricultural films, packaging waste, and shopping bags. Process up to 800 kg/hour with minimal downtime.

View Film Shredder Specifications

Comparison of rigid pipe waste and flexible film waste showing physical differences Comparison of rigid pipe waste and flexible film waste showing physical differences

Direct Comparison: Pipe Shredders vs. Film Shredders

This comprehensive comparison highlights the key differences between MAIKONG’s pipe and film shredding solutions to help you identify the most suitable equipment for your specific recycling needs.

Feature MAIKONG Pipe Shredders MAIKONG Film Shredders
Optimal Materials PVC, HDPE, PP pipes, rigid profiles, thick-walled containers LDPE films, agricultural films, shopping bags, packaging films
Cutting Mechanism Dual-shaft with interlocking blades, high shear force Single-shaft with specialized anti-wrapping rotor design
Motor Power 18.5-90 kW (higher power requirement) 11-45 kW (lower power requirement)
Blade Type Thick, robust blades with high wear resistance Thinner, precision-ground blades with specialized geometry
Feeding System Heavy-duty hydraulic ram for dense materials Anti-bridging agitators with specialized hopper design
Output Size 20-50mm (coarser output typical) 10-30mm (finer output possible)
Throughput 500-1500 kg/hour (material dependent) 300-800 kg/hour (material dependent)
Maintenance Needs Blade sharpening/replacement every 600-800 hours More frequent cleaning, blade adjustment every 400-600 hours

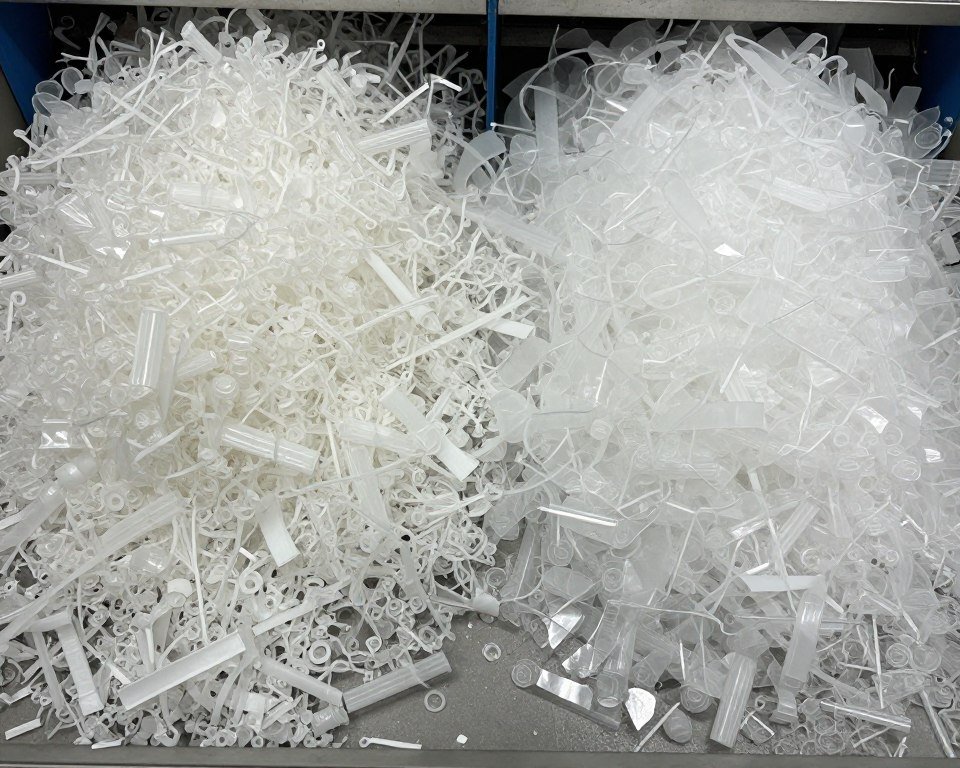

Side-by-side comparison of pipe and film shredder output materials

Selection Guide: Choosing the Right MAIKONG Shredder for Philippine Businesses

Selecting the optimal shredder for your specific application involves evaluating several key factors. This guide will help Philippine businesses make an informed decision based on their unique requirements.

Key Factors to Consider When Choosing Between Pipe and Film Shredders

Material Composition

Assess your waste stream composition:

  • Predominantly rigid pipes: Choose a MAIKONG pipe shredder
  • Primarily films and flexible packaging: Select a MAIKONG film shredder
  • Mixed materials: Consider a dual-purpose solution or pre-sorting

Volume Requirements

Match equipment capacity to your processing needs:

  • Small operations ( Small plastic shredder models
  • Medium operations (500-2000 kg/day): Standard industrial models
  • Large operations (> 2000 kg/day): High-capacity industrial solutions

Output Requirements

Consider your downstream processing needs:

  • For washing lines: 20-50mm output size typically sufficient
  • For direct granulation: Smaller, more uniform output required
  • For compaction/transport: Size consistency less critical

Not Sure Which Shredder You Need?

Our MAIKONG experts can analyze your specific waste stream and processing requirements to recommend the optimal solution for your Philippine operation.

Consult Our Experts on WhatsApp

MAIKONG expert consulting with Philippine client about shredder selection

Philippine Success Stories: MAIKONG Shredders in Action

MAIKONG has successfully implemented both pipe and film shredding solutions across the Philippines. These case studies demonstrate real-world applications and benefits realized by local businesses.

Case Study: Manila Pipe Recycling Facility

A major Manila-based recycling operation needed a solution for processing 2 tons of PVC and HDPE pipes daily from construction waste.

Challenge:

  • Wide variety of pipe diameters (20-630mm)
  • Contamination with concrete and metal fittings
  • Limited floor space for equipment

Solution:

MAIKONG implemented the HD-800 dual-shaft pipe shredder with:

  • Custom blade configuration for varied pipe sizes
  • Integrated metal detection system
  • Compact footprint design

Results:

  • Processing capacity increased by 40%
  • Maintenance downtime reduced by 60%
  • Energy consumption decreased by 25%
View Similar Solutions

Case Study: Cebu Film Recycling Operation

A Cebu-based recycler specializing in agricultural films and packaging waste needed to improve processing efficiency.

Challenge:

  • Frequent equipment jams with conventional shredders
  • Inconsistent output size affecting washing efficiency
  • High contamination with soil and organic matter

Solution:

MAIKONG provided the SF-600 film shredder featuring:

  • Patented anti-wrapping rotor technology
  • Specialized screen system for consistent output
  • Pre-cleaning system integration

Results:

  • Jam-related downtime reduced by 85%
  • Throughput increased from 300 to 650 kg/hour
  • Washing efficiency improved by 30%
View Similar Solutions

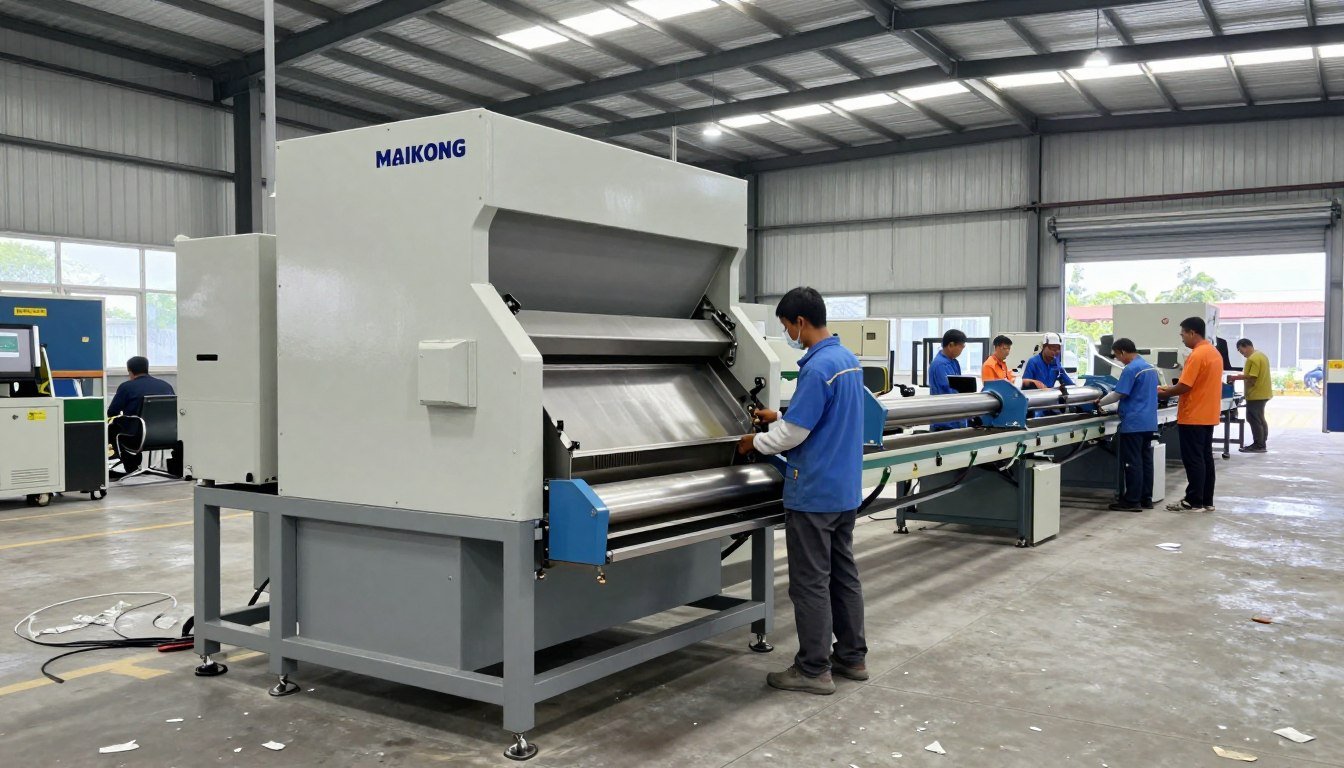

MAIKONG shredder installation at a Philippine recycling facility

Maintenance Considerations: Pipe Shredders vs. Film Shredders

Proper maintenance is essential for maximizing equipment lifespan and operational efficiency. The maintenance requirements differ significantly between pipe and film shredding systems.

Pipe Shredder Maintenance

  • Blade Inspection: Check for wear and damage every 200 operating hours
  • Blade Rotation/Replacement: Rotate or replace blades every 600-800 hours depending on material
  • Drive System: Inspect gearbox oil levels monthly, change oil every 2,000 hours
  • Hydraulic System: Check hydraulic fluid levels weekly, replace filters quarterly
  • Cutting Chamber: Inspect for material buildup weekly, clean as needed

Film Shredder Maintenance

  • Anti-Wrapping Components: Daily inspection and cleaning to prevent buildup
  • Blade Adjustment: Check and adjust blade clearance every 100 operating hours
  • Screen Maintenance: Inspect for clogging daily, clean or replace as needed
  • Feeding System: Lubricate moving parts weekly, check for wear biweekly
  • Ventilation System: Clean filters weekly, inspect ducting monthly

MAIKONG Maintenance Support

MAIKONG offers comprehensive maintenance packages and genuine plastic shredder parts to ensure optimal performance of your equipment. Our Philippine service team provides rapid response for maintenance and repairs.

View Maintenance Solutions

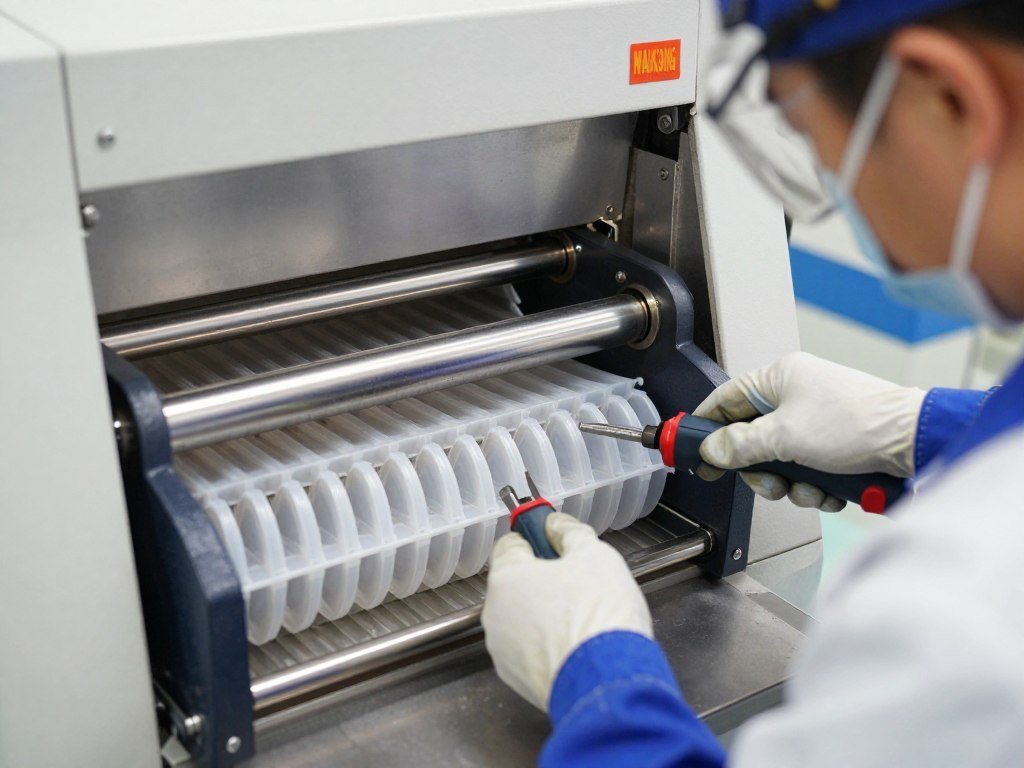

MAIKONG technician performing maintenance on a plastic shredder

Conclusion: Making the Right Choice for Your Philippine Recycling Operation

Selecting between pipe shredders and film shredders requires careful consideration of your specific material stream, processing requirements, and business objectives. MAIKONG offers specialized solutions for both applications, engineered to deliver optimal performance and value for Philippine recycling operations.

For rigid materials like PVC and HDPE pipes, MAIKONG’s heavy-duty pipe shredders provide the robust construction and high-torque operation needed for efficient processing. For flexible materials like agricultural films and packaging waste, our specialized film shredders incorporate anti-wrapping technology and optimized feeding systems to prevent jams and ensure consistent output.

By partnering with MAIKONG, Philippine businesses gain access not only to industry-leading equipment but also to our extensive expertise in plastic recycling. Our team works closely with each client to understand their unique requirements and recommend the most appropriate solution.

Contact MAIKONG Today

Ready to optimize your plastic recycling operation? Contact our team to discuss your specific requirements and discover how MAIKONG’s specialized shredding solutions can help your Philippine business achieve its recycling goals.

008613-51090-74-01
Contact via WhatsApp Request a Quote

Email: Lucy@plasticshredder.ph

Learn more about MAIKONG Plastic Shredder Manufacturer

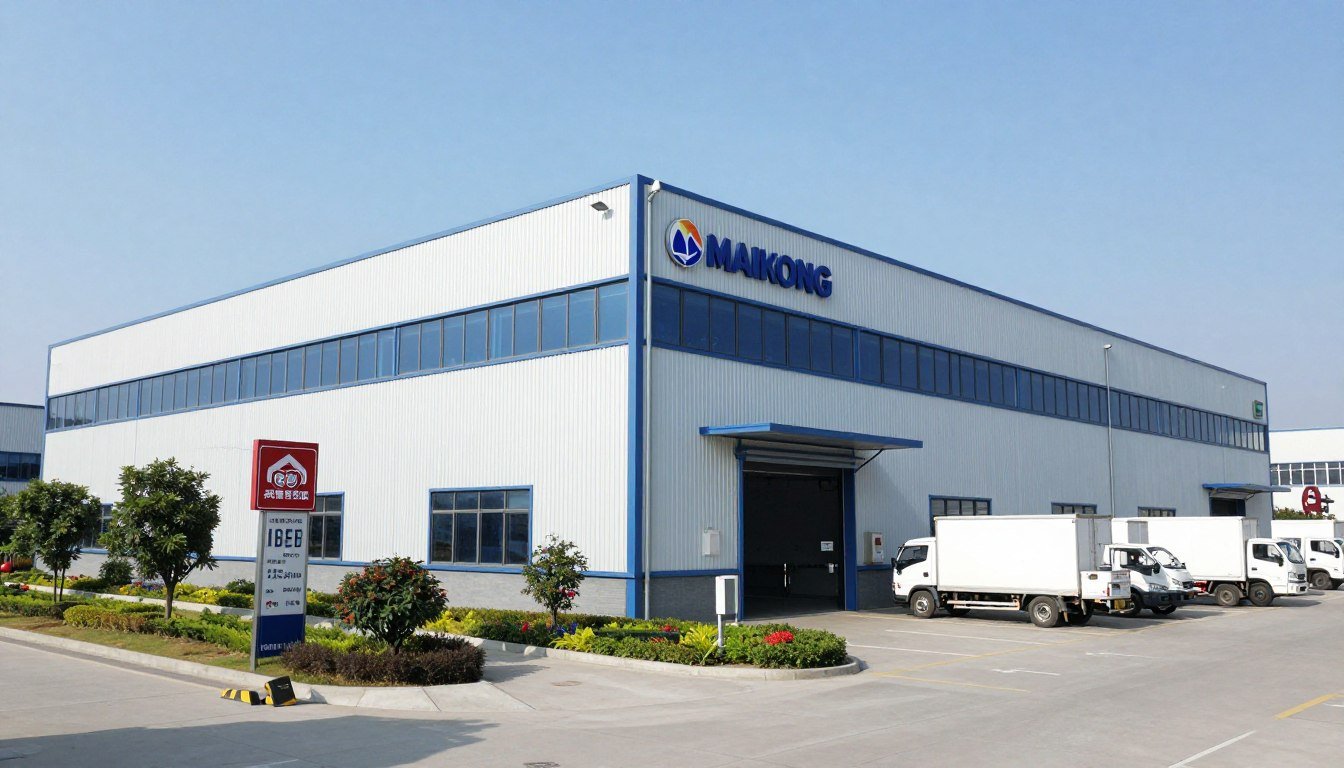

MAIKONG headquarters and manufacturing facility in GD, SZ
