Torque and Shear Force in Plastic Shredding: The Mechanical Science Behind Efficient Recycling
The effectiveness of plastic shredding operations hinges on understanding the fundamental mechanical principles that drive the process. Torque and shear force are the two critical factors that determine how efficiently a plastic shredder can process various types of plastic waste. For businesses in the Philippines looking to optimize their recycling operations, understanding these concepts is essential for selecting the right equipment and maximizing operational efficiency.
In this comprehensive guide, we’ll explore how torque and shear force work together in plastic shredding processes, the implications for different types of plastic materials, and how MAIKONG’s engineering expertise translates these principles into superior machine performance for your specific needs.
The Fundamental Role of Torque in Plastic Shredding

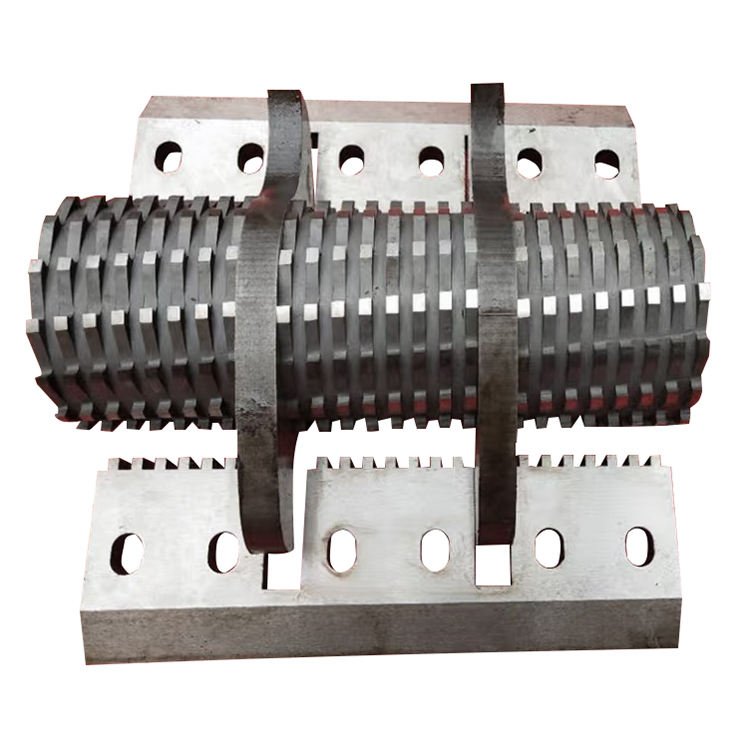

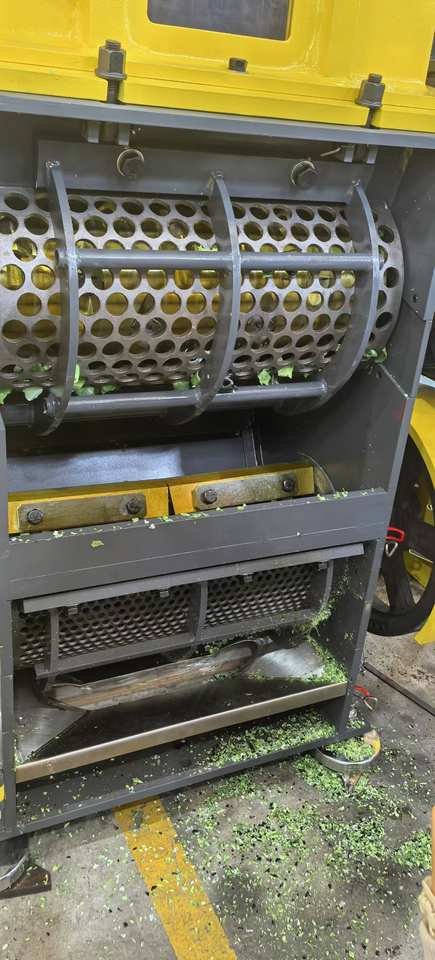

Torque application in a MAIKONG plastic shredder system
Torque is the rotational force that drives the cutting mechanism in a plastic shredder machine. It’s measured in Newton-meters (Nm) and represents the twisting force that causes an object to rotate around an axis. In the context of plastic shredding, torque determines how effectively the machine can overcome resistance when processing different types of plastic materials.
How Torque Affects Shredding Performance
The relationship between torque and plastic shredding efficiency is direct and critical. Higher torque values enable a shredder to process tougher materials without stalling. This is particularly important when dealing with:
Thick-walled plastic products like HDPE pipes and containers
Rigid engineering plastics that offer significant resistance
Contaminated plastic waste that may contain non-plastic elements
Large volume plastic items that require substantial force to process
MAIKONG’s industrial plastic shredder models are engineered with optimal torque specifications based on extensive testing across various plastic waste streams common in Philippine industrial and commercial settings.
Torque Calculation in Shredder Design
The torque requirement for effective plastic shredding is calculated using the formula:
T = P × 9550 / n
Where T is torque (Nm), P is power (kW), and n is rotational speed (rpm)
This formula illustrates an important relationship: at the same power level, a slower-rotating shaft delivers higher torque. This explains why many industrial shredders operate at relatively low speeds but generate tremendous torque for processing challenging materials.
Shear Force Mechanics in Effective Plastic Shredding

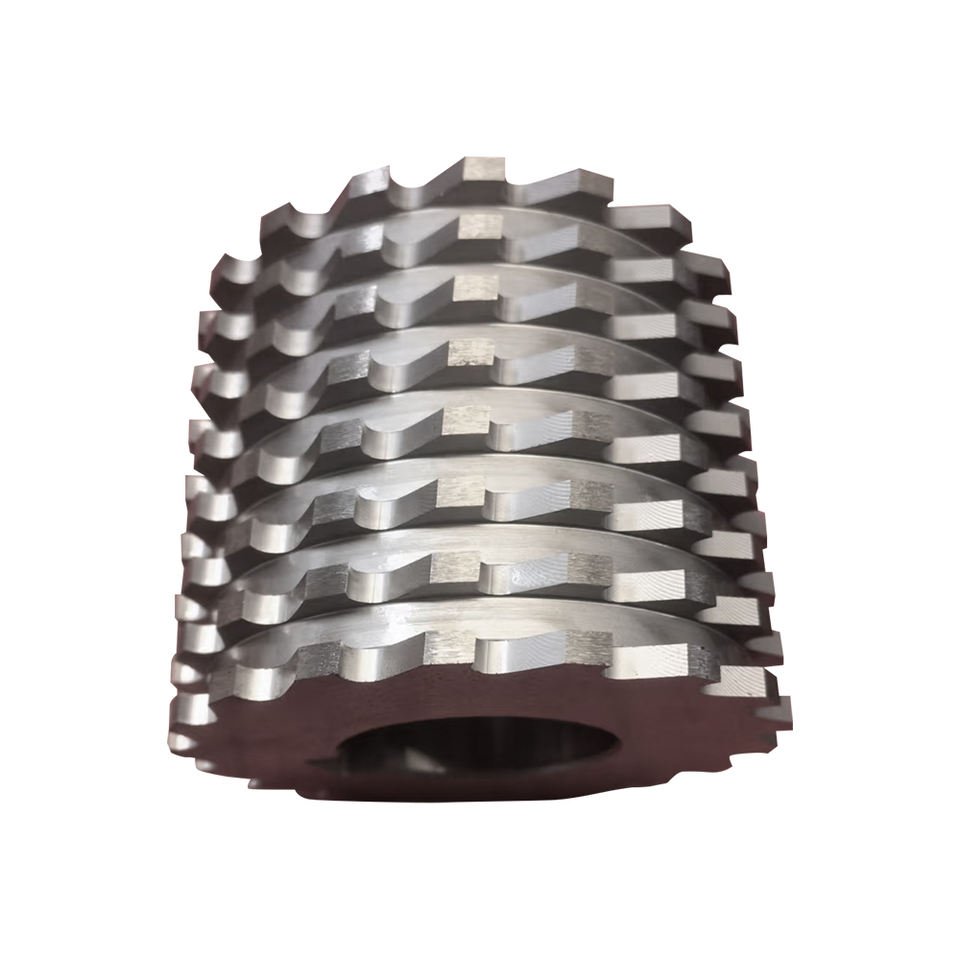

Shear force action between cutting blades in MAIKONG shredders
While torque provides the rotational force, shear force is what actually cuts and tears the plastic material. Shear force occurs when two forces act in opposite directions parallel to each other, creating a sliding effect that separates the material along the plane of action.
The Physics of Shearing in Plastic Materials
When plastic material enters a plastic shredder, it encounters two key types of forces:
Compression Force
The material is squeezed between opposing surfaces, which helps to hold it in place and begin the deformation process.
Shear Force
As the blades move past each other, they create a sliding action that exceeds the material’s shear strength, causing it to separate.
The effectiveness of plastic shredding depends on applying sufficient shear force to overcome the material’s resistance. Different plastics have varying shear strength properties, which is why specialized blade designs and configurations are necessary for optimal processing.
Shear stress (τ) = Force (F) / Area (A)
When this stress exceeds the material’s shear strength, the plastic will fail and separate.
The Critical Relationship Between Torque and Shear in Plastic Shredding
Understanding how torque and shear force interact is essential for designing efficient plastic shredding systems. These two mechanical principles work together in a complementary fashion:

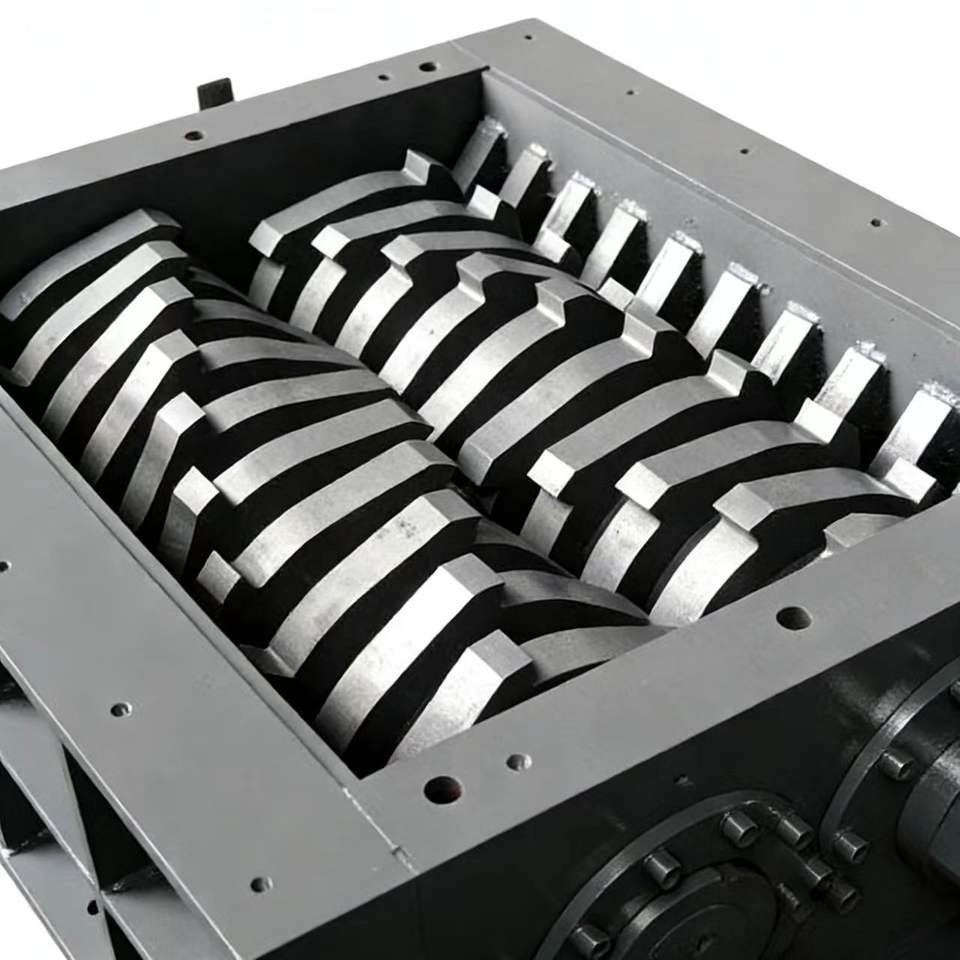

Torque-to-shear force transmission in MAIKONG shredder systems
Optimal Torque-Shear Balance
Consistent cutting performance across varying materials
Reduced energy consumption through efficient force application
Lower maintenance requirements and extended blade life
Ability to handle unexpected material variations
Imbalanced Torque-Shear Relationship
Excessive wear on mechanical components
Frequent system jams requiring manual intervention
Inconsistent output particle size
Higher energy consumption and operational costs
MAIKONG engineers have perfected this balance in our plastic shredder designs, ensuring optimal performance even when processing challenging materials common in Philippine industrial and commercial waste streams.
Material-Specific Considerations for Different Plastic Types
Different plastic types require specific torque and shear force configurations for optimal plastic shredding. Understanding these variations is crucial for selecting the right equipment for your specific waste stream.
Plastic Type
Characteristics
Torque Requirements
Shear Considerations
Recommended Shredder Type
#2 HDPE
Rigid, high tensile strength
High
Sharp blade angles, close tolerances
Industrial plastic shredder with reinforced cutting system
#4 LDPE
Flexible, lower melting point
Medium
Specialized blade design to prevent wrapping
Plastic shredder with anti-wrapping features
#5 PP
Semi-rigid, good fatigue resistance
Medium-High
Moderate blade gap, specialized rotor design
Versatile industrial plastic shredder
PET Bottles
Tough, thin-walled
Medium
High blade count, specialized cutting angles
Plastic bottle shredder with high RPM
Engineering Plastics
Very rigid, high strength
Very High
Reinforced blades, precise gap control
Heavy-duty industrial plastic shredder

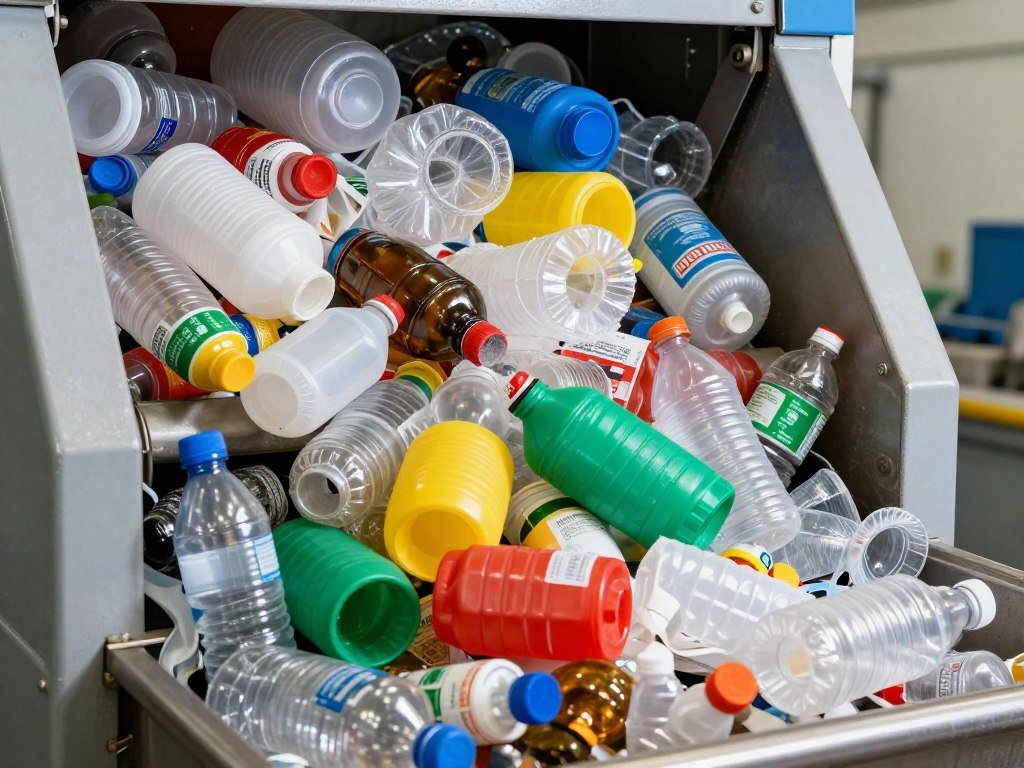

Different plastic types require specific shredder configurations for optimal processing
MAIKONG’s range of plastic shredder solutions includes specialized configurations for each of these material types, ensuring optimal processing efficiency regardless of your specific waste stream composition.
Not Sure Which Shredder Configuration Is Right For Your Materials?
Our technical team can analyze your specific plastic waste stream and recommend the optimal shredder configuration for your needs.
How Machine Design Impacts Torque and Shear Performance
The mechanical design of a plastic shredder significantly influences how effectively torque is converted into shear force. Several key components work together to optimize this conversion:

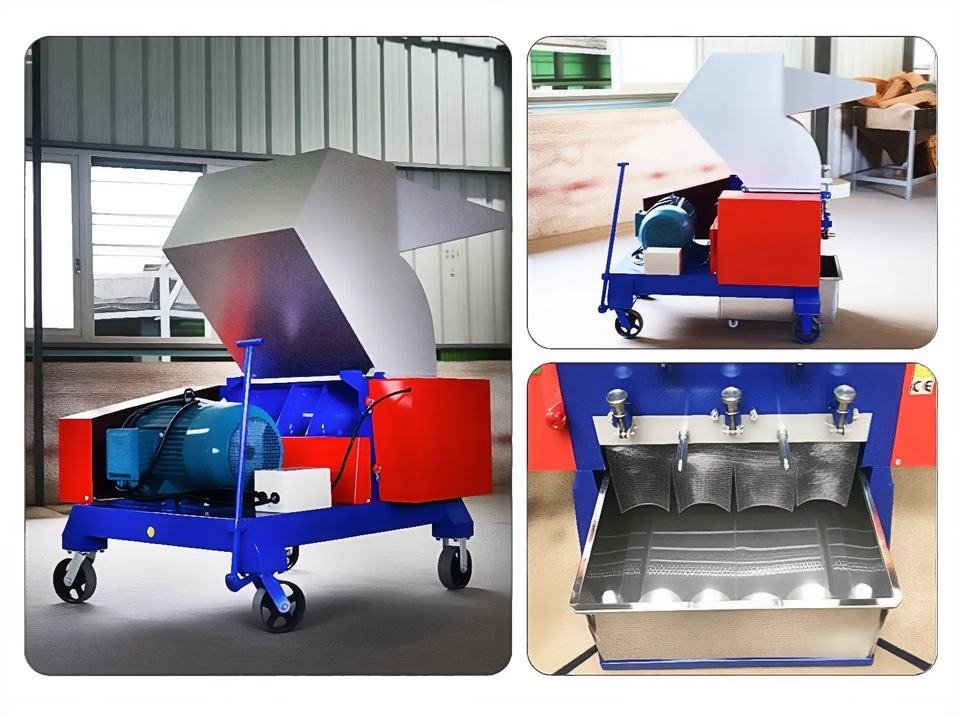

Key components in MAIKONG shredders that optimize torque-to-shear conversion
Drive System
The motor and gearbox configuration determines the base torque generation. MAIKONG uses premium motors coupled with precision-engineered gearboxes to deliver consistent torque across varying load conditions.
Rotor Design
The rotor is the heart of the shredder, transferring torque to the cutting blades. Our engineers optimize rotor diameter, mass, and mounting to maximize inertia and maintain consistent cutting force.
Blade Configuration
Blade geometry, spacing, and material directly affect how efficiently torque is converted to shear force. MAIKONG’s proprietary blade designs are optimized for specific plastic types.
The Impact of Blade Design on Shear Efficiency
Blade design is perhaps the most critical factor in determining shear efficiency in plastic shredding. Key considerations include:
Blade Angle: The cutting angle affects how efficiently force is transferred to the material
Blade Gap: The clearance between opposing blades determines cut precision and required force
Blade Material: Hardened steel alloys with specific compositions optimize durability and cutting performance
Blade Maintenance: Regular sharpening and proper gap adjustment maintain optimal shear performance
MAIKONG’s plastic shredder parts are engineered to precise specifications, ensuring optimal performance and longevity even when processing challenging materials.

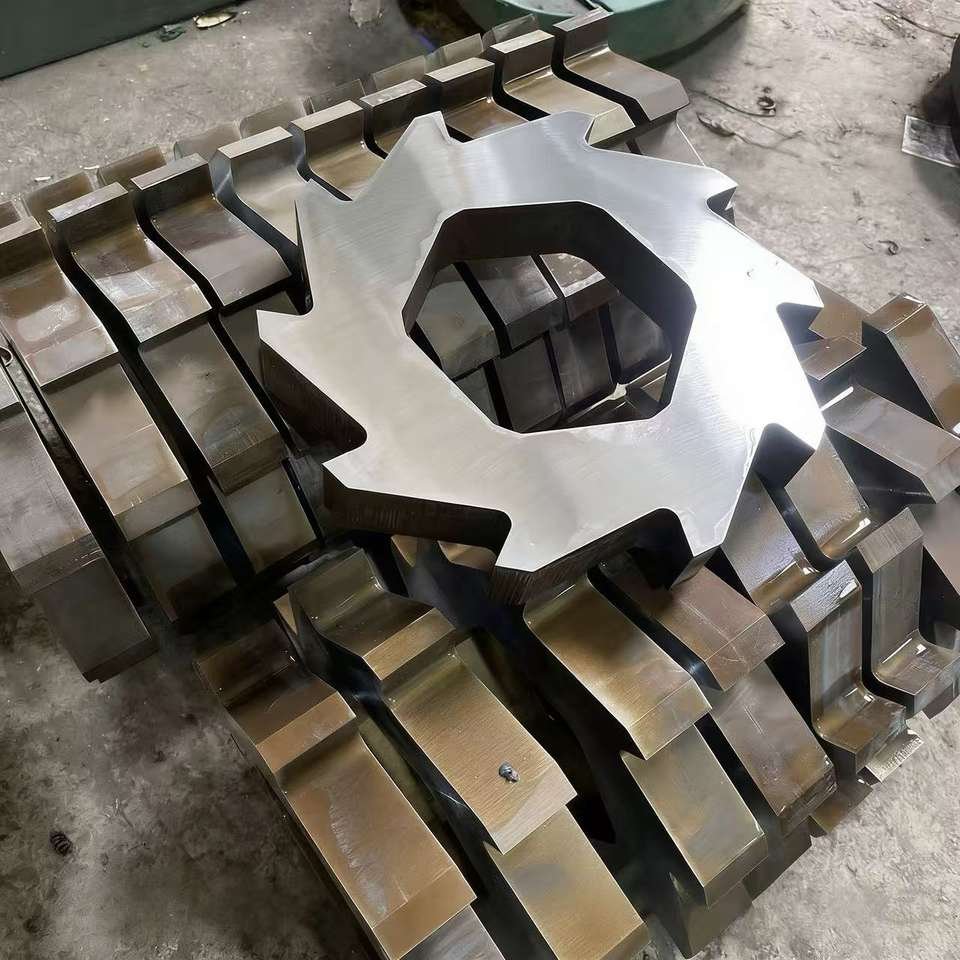

Specialized blade geometry in MAIKONG shredders optimizes shear force application
Scale Considerations: From Small Plastic Shredder to Industrial Systems
The principles of torque and shear force apply across all scales of plastic shredding equipment, but with important differences in implementation:

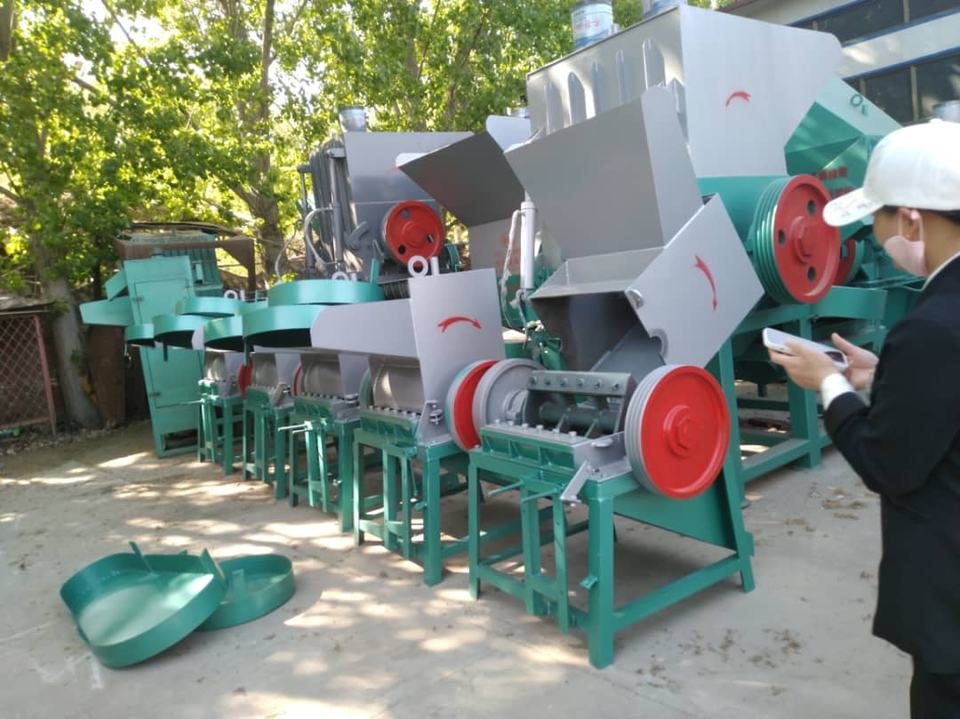

MAIKONG offers plastic shredders across all scales, from mini to industrial
Mini Plastic Shredder Machine
Compact design for limited space applications
Direct drive systems with specialized gearing
Optimized for lower volume but consistent operation
Ideal for small businesses and specific material streams
Torque multiplication through precision gearing
Small Plastic Shredder
Balanced performance for medium-volume applications
Enhanced motor systems with optimized power curves
Versatile processing capabilities across material types
Efficient torque delivery through advanced drive systems
Ideal for growing businesses with diverse needs
Industrial Plastic Shredder
Maximum torque generation for challenging materials
Sophisticated hydraulic or electric drive systems
Engineered for continuous heavy-duty operation
Advanced blade systems for optimal shear performance
Designed for high-volume industrial applications
Regardless of scale, the fundamental principles remain consistent: effective plastic shredding requires optimal conversion of torque into shear force. MAIKONG’s engineering team applies these principles across our entire product range, ensuring each machine delivers optimal performance for its intended application.
Find the Right Size Shredder for Your Operation
From small-scale operations to industrial facilities, MAIKONG offers plastic shredders optimized for your specific throughput requirements and space constraints.
Maintenance Considerations for Optimal Torque and Shear Performance
Maintaining optimal torque and shear performance in plastic shredding equipment requires regular attention to several key areas:
Regular maintenance ensures optimal performance of MAIKONG shredders
Blade Maintenance
Regular inspection for wear patterns
Timely rotation or replacement of blades
Proper torque application when securing blades
Maintaining optimal blade gaps
Drive System Maintenance
Regular lubrication of moving components
Inspection of drive belts or chains
Monitoring of motor performance metrics
Verification of gearbox oil quality
MAIKONG’s plastic shredder parts are designed for easy maintenance, with modular components that can be quickly serviced or replaced to minimize downtime. Our comprehensive maintenance programs ensure your equipment maintains optimal torque and shear performance throughout its operational life.
Pro Tip: Blade Rotation Schedule
Implementing a regular blade rotation schedule can significantly extend blade life and maintain consistent shear performance. For most applications, rotating blades after every 80-100 hours of operation provides optimal results.
Real-World Applications: Torque and Shear Force in Action
Understanding the theoretical aspects of torque and shear force is important, but seeing how these principles apply in real-world plastic shredding applications provides valuable context:

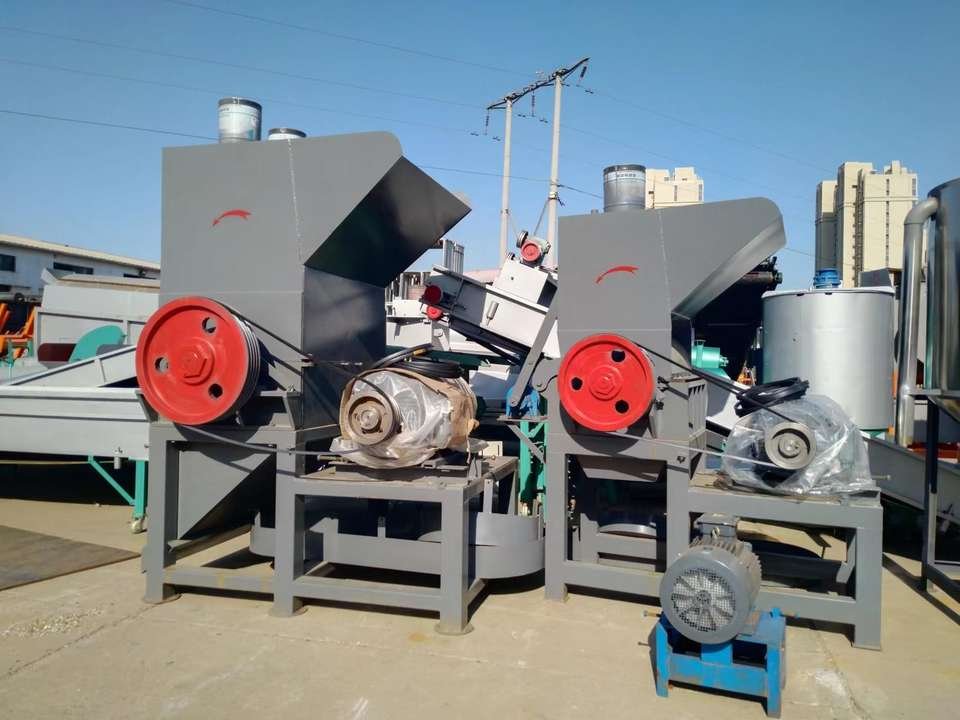

MAIKONG industrial shredder processing mixed plastic waste at a Philippine recycling facility
Case Study: HDPE Pipe Recycling
A water utility company in the Philippines needed to process large quantities of decommissioned HDPE pipes. These thick-walled, rigid pipes presented significant challenges for standard shredding equipment.
“The MAIKONG industrial plastic shredder handled our HDPE pipes without hesitation. The consistent torque delivery even when processing multiple pipes simultaneously was impressive, and the output size was remarkably uniform.”
— Operations Manager, Philippine Water Utility
The solution involved a MAIKONG industrial plastic shredder with specialized blade configuration and enhanced torque delivery system. The results included:
Processing capacity increased by 40% compared to previous equipment
Energy consumption reduced by 15% through more efficient torque application
Maintenance requirements decreased due to optimized blade design
Consistent output particle size for improved downstream processing
Application: PET Bottle Recycling
PET bottles present different challenges for plastic shredding equipment. Their thin walls but tough composition requires specific torque and shear force considerations:
MAIKONG plastic bottle shredder optimized for PET processing
MAIKONG’s plastic bottle shredder systems are specifically engineered with:
Higher blade count for more cutting points per revolution
Optimized blade angles for clean cutting of thin-walled materials
Specialized screen designs for consistent output sizing
Torque profiles tuned for the unique characteristics of PET
Need a Custom Solution for Your Specific Materials?
MAIKONG engineers can develop a customized shredding solution optimized for your specific plastic waste stream and processing requirements.
The field of plastic shredding continues to evolve, with several emerging technologies promising to further optimize torque delivery and shear force application:
Next-generation MAIKONG shredders feature advanced torque monitoring and optimization
Adaptive Torque Systems
Emerging technologies allow for real-time torque adjustment based on material resistance, optimizing energy usage and reducing wear while maintaining consistent output quality.
Advanced Material Science
New blade materials and coatings are extending service life while improving cutting efficiency, allowing for more effective shear force application with less energy input.
Intelligent Monitoring
Smart systems that continuously monitor torque loads and shear performance can predict maintenance needs and optimize operational parameters automatically.
MAIKONG remains at the forefront of these innovations, continuously incorporating advanced technologies into our plastic shredder designs to deliver superior performance and value to our customers in the Philippines and beyond.
Conclusion: Optimizing Your Plastic Shredding Operations
Understanding the fundamental principles of torque and shear force is essential for selecting the right plastic shredder for your specific needs and optimizing its performance. By considering your material characteristics, volume requirements, and output specifications, you can ensure your investment delivers maximum value.
MAIKONG’s comprehensive range of plastic shredding solutions—from mini plastic shredder machines to large industrial plastic shredders—incorporates advanced torque and shear force engineering to deliver superior performance across all applications. Our technical team works closely with customers throughout the Philippines to understand their specific requirements and recommend the optimal solution.
MAIKONG offers a complete range of plastic shredders optimized for different applications
Ready to Optimize Your Plastic Recycling Operation?
Contact MAIKONG today to discuss your specific requirements and discover how our advanced plastic shredding solutions can help you achieve your recycling goals.
By partnering with MAIKONG, you gain access to not just superior equipment, but also decades of expertise in plastic shredding technology and applications. Our commitment to customer success extends beyond the initial sale to comprehensive support throughout your equipment’s operational life.
